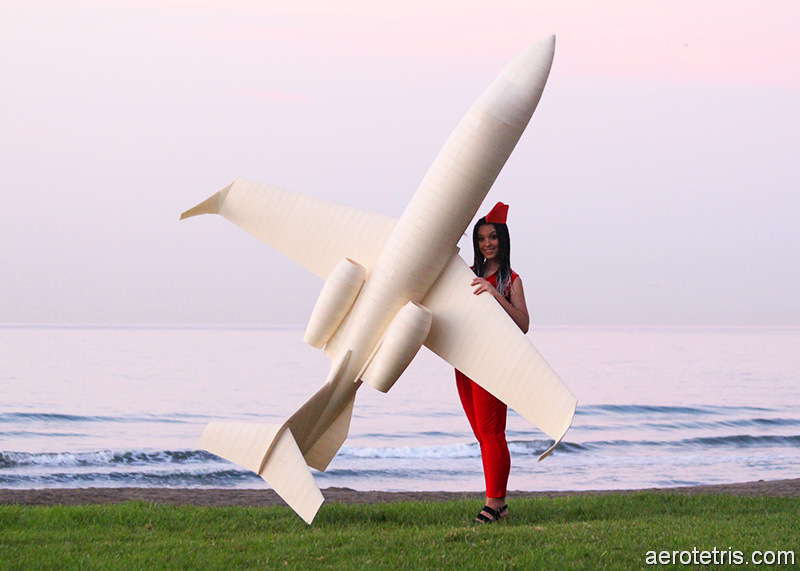

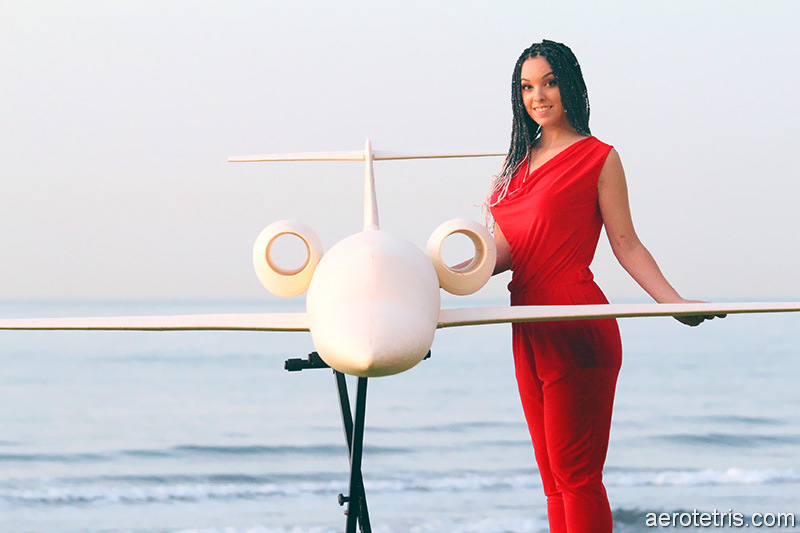

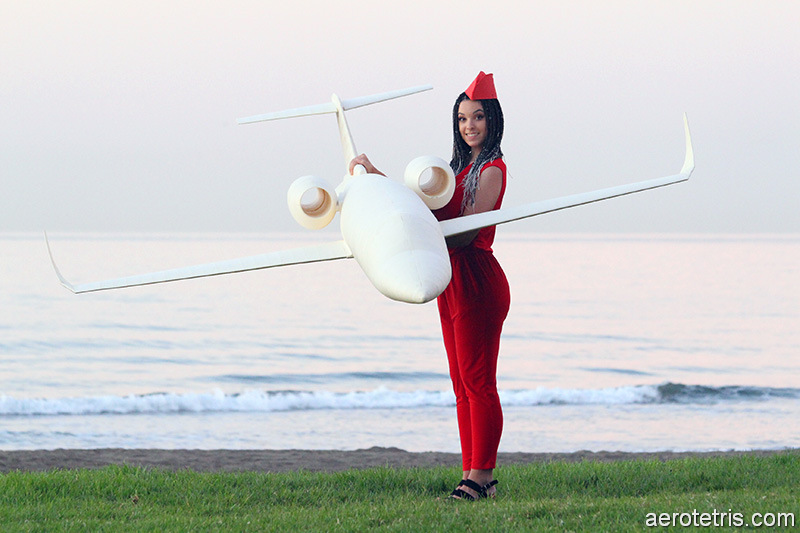

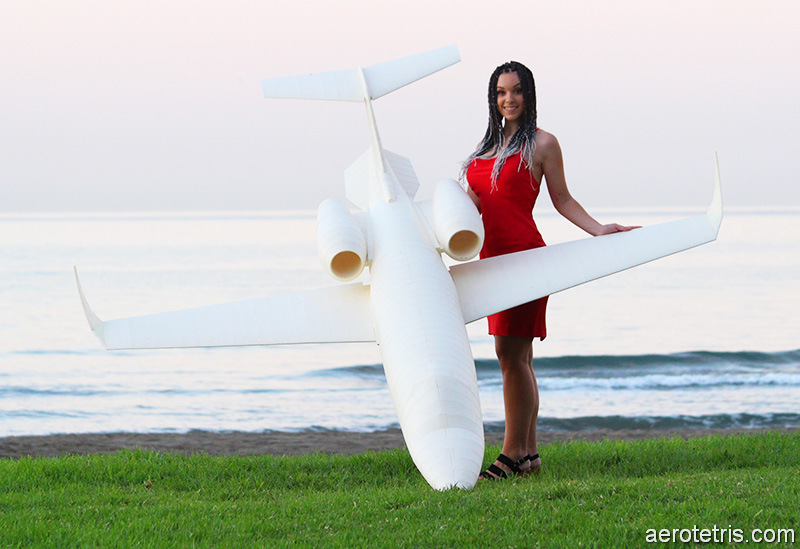

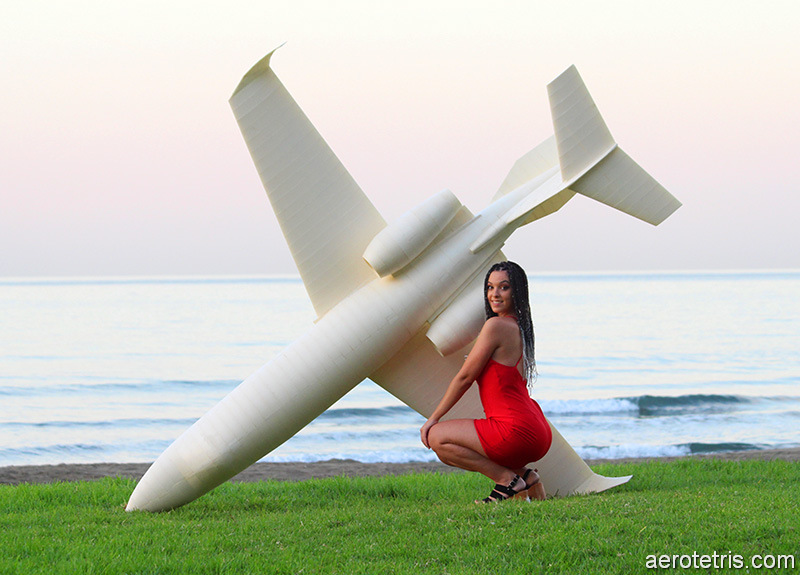

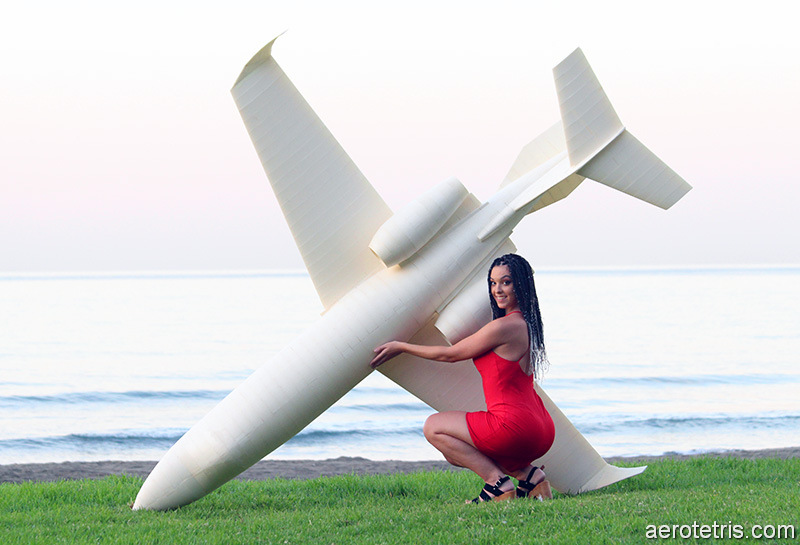

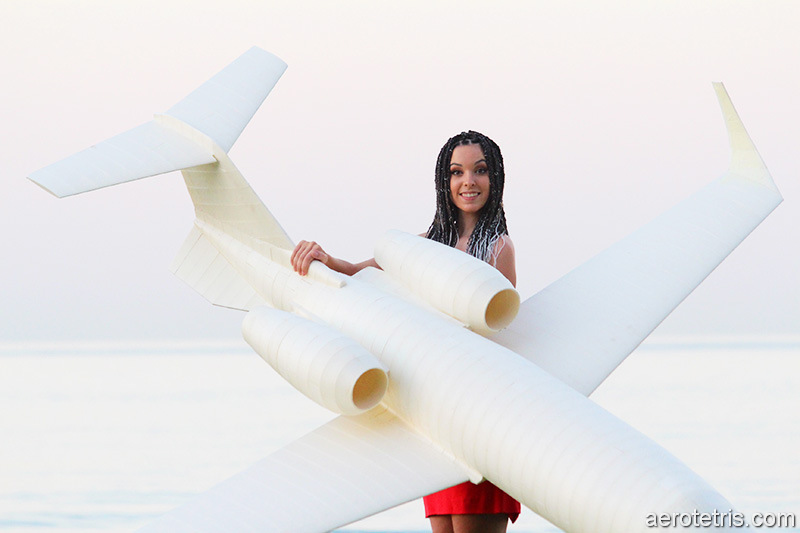

Model Learjet 31/35 - 2240 - basic model
23/24/25/28 - included in basic Model
55/60 - upgrade in work


  31 35 23 24 25 28 55 60
Wingspan 2017.6 1818.4 1523.2 1523.2 1523.2 2016 2016 2016
Length 2240 2240 1990.4 1990.4 2189.6 2189.6 2537.6 2700.8
Wing area dm² 72.8 76.8 68.5 68.5 68.5 72.8 72.8 72.8
Reference area (S)dm² 85 76.08 67.8 67.8 67.8 85 85 85
Reference length (lm) 344.7 364 374.8 374.8 374.8 344.7 344.7 344.7
CG (16%) 1202.3 1191.8 976.1 976.1 1163.2 1164.2 1492.2 1647.8
CG (8%) 1229.9 1220.9 1006.2 1006.2 1193.1 1191.8 1519.8 1675.4
AC 1257.4 1250 1036.2 1036.2 1223.1 1219.4 1547.3 1703

Wingspan - 2017.6/1818.4mm
Length - 2240/2240mm
Wing area (AutoCad) - 72.8/76.8dm²
Reference area (S): 85/76.08dm²
Reference length (lm): 344.7/364mm
CG (16%):  1202.3/1191.8mm
CG (8%):  1229.9/1220.9mm
AC:  1257.4/1250mm

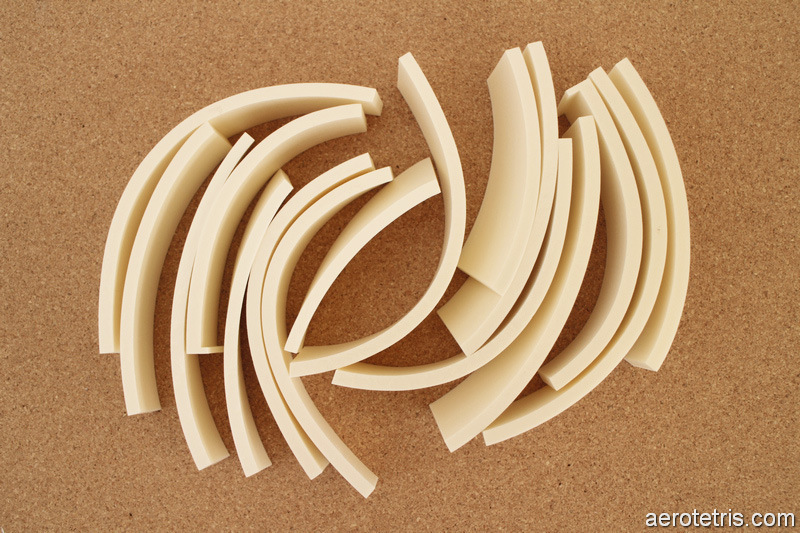

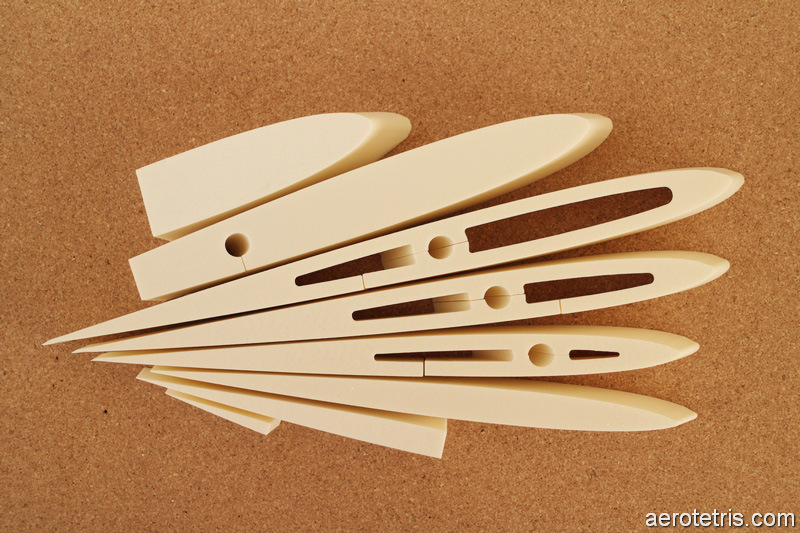

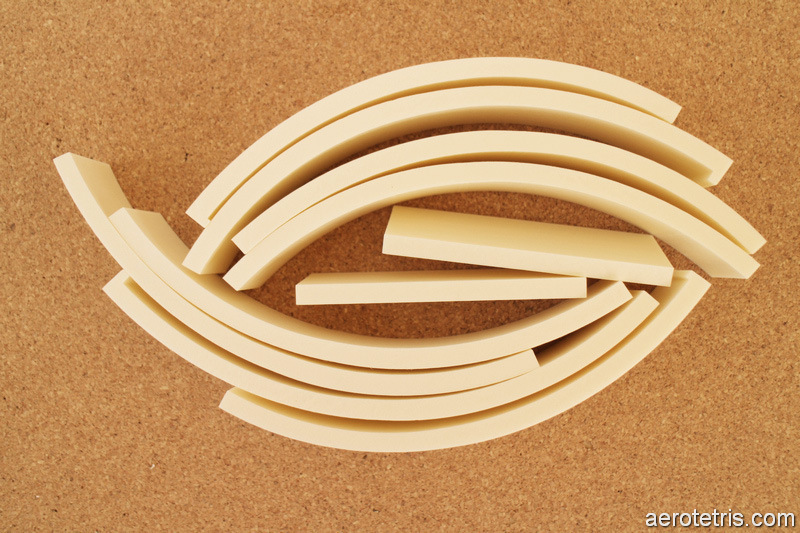

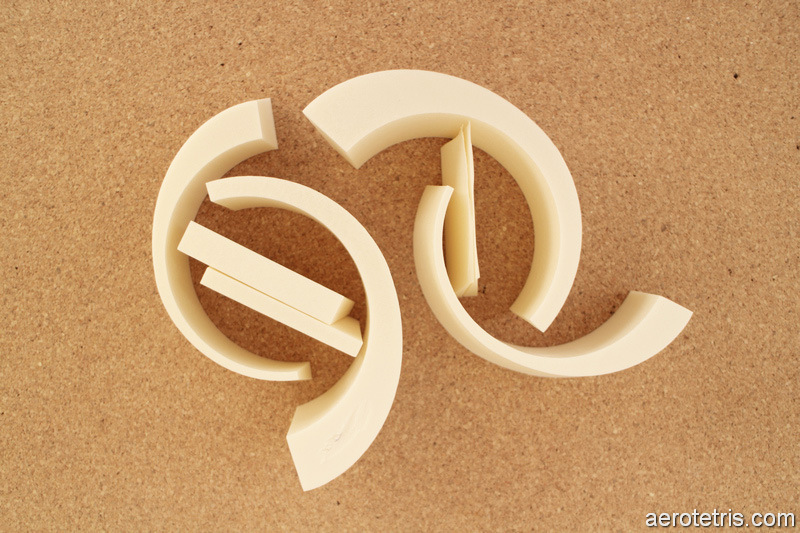

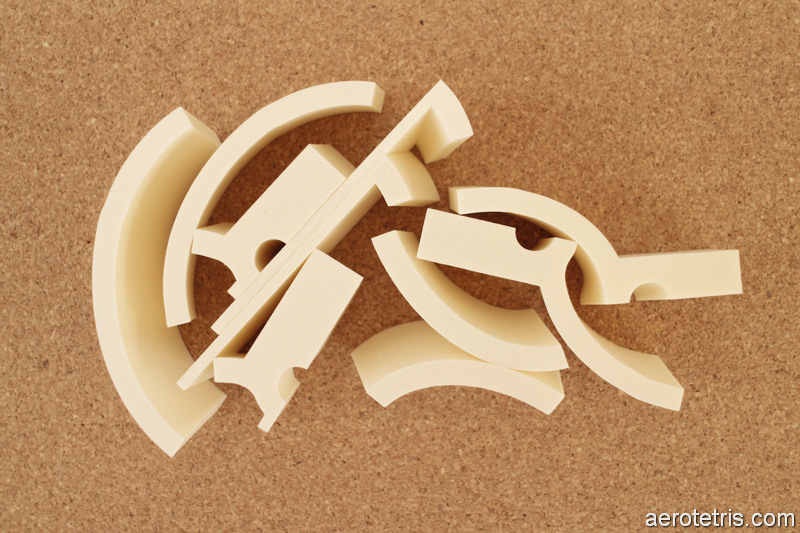

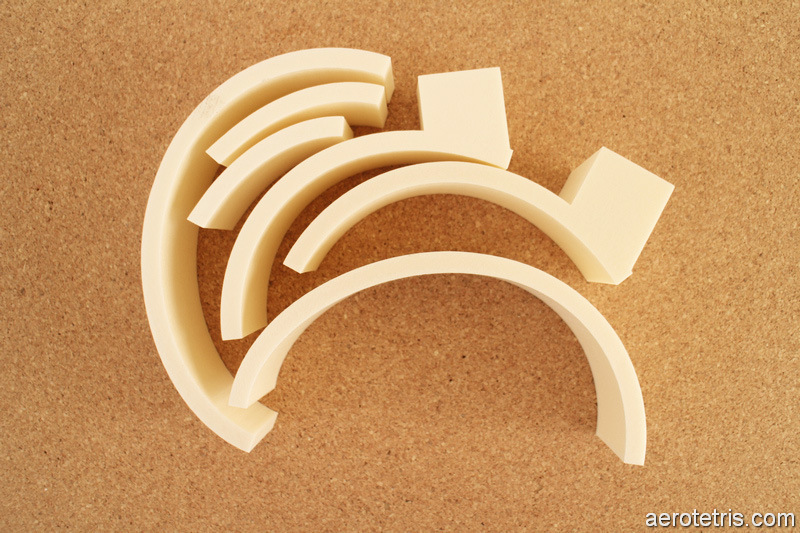

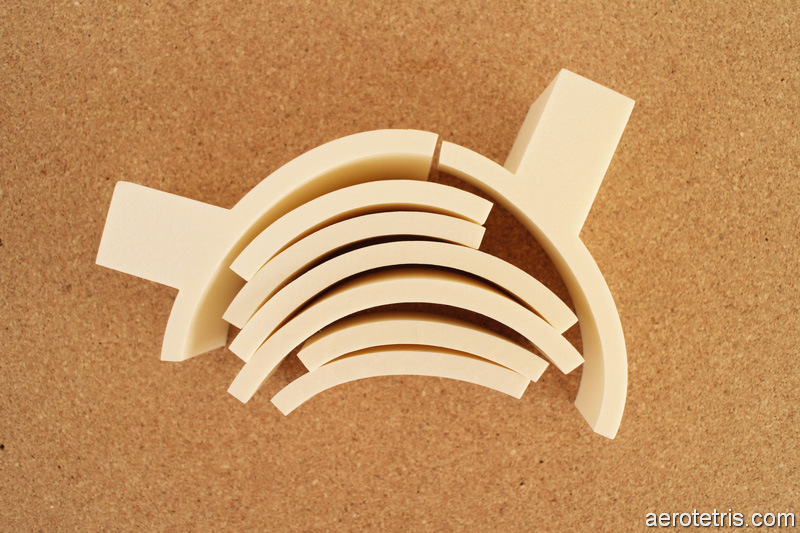

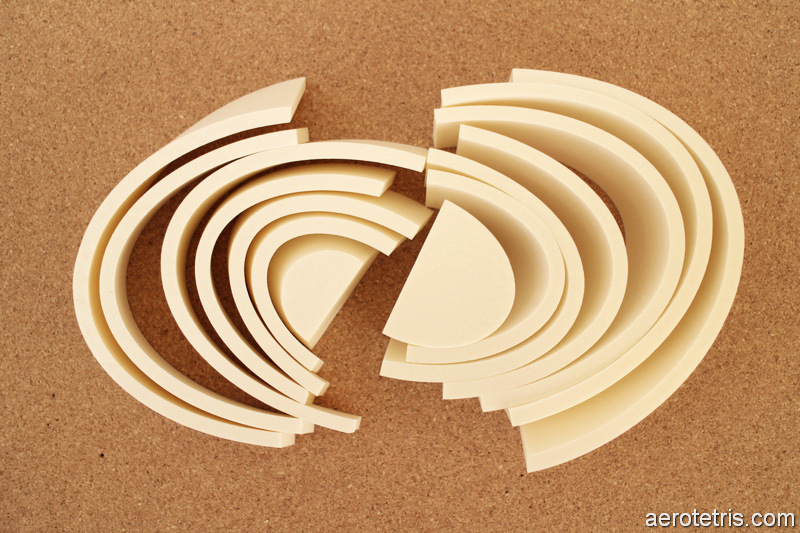

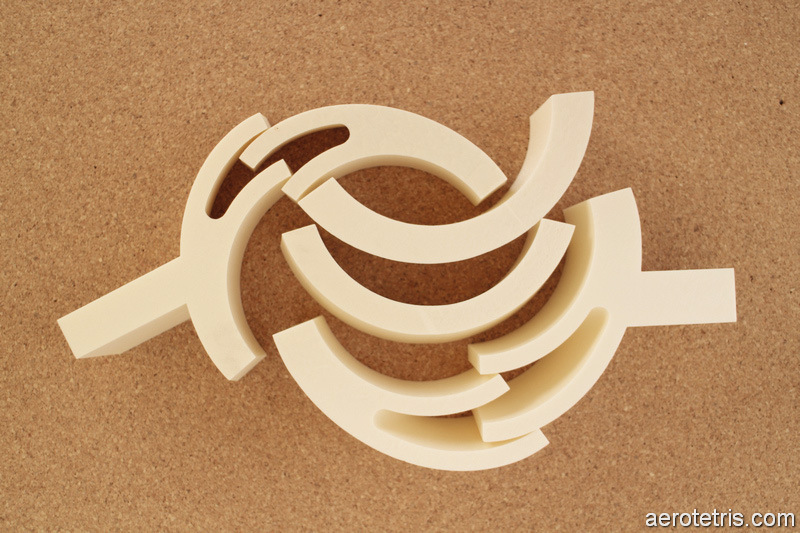

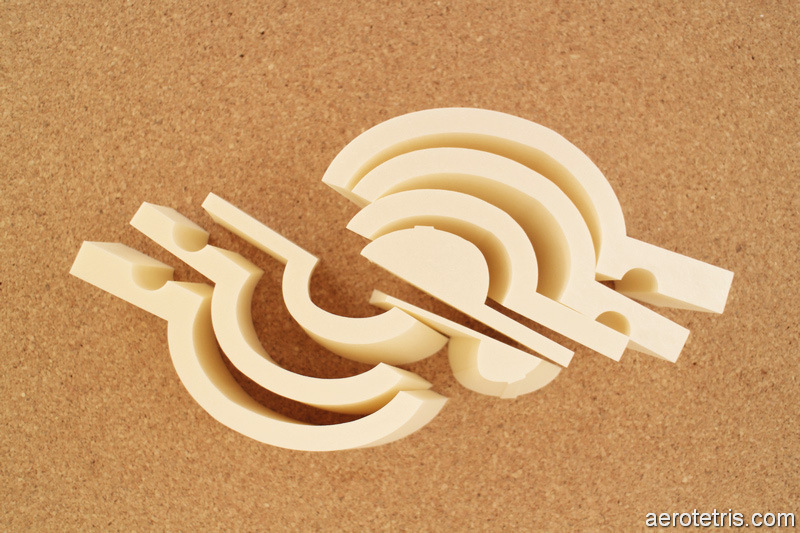

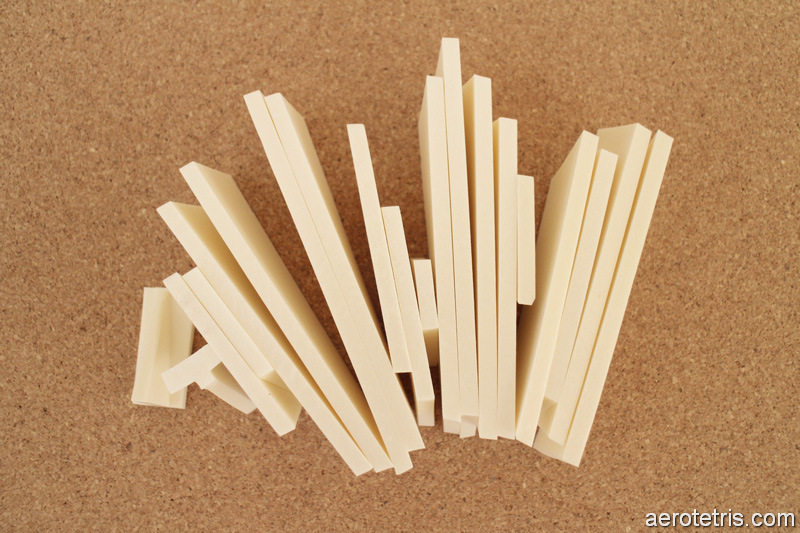

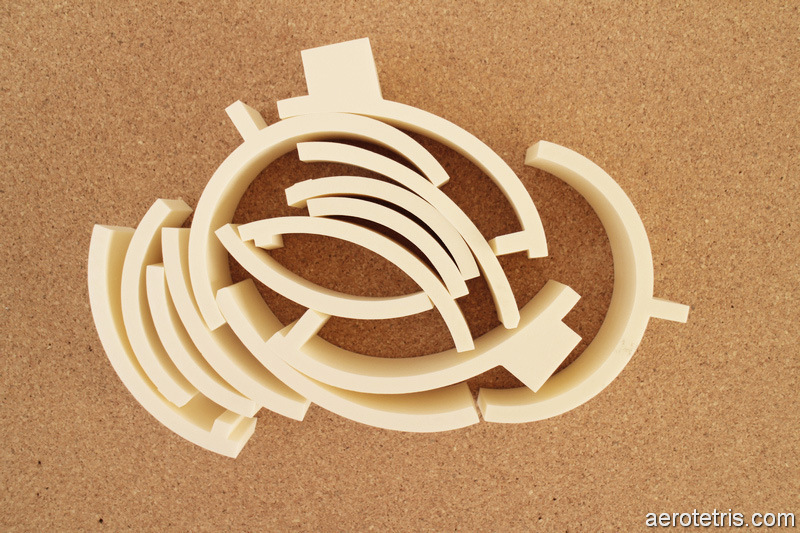

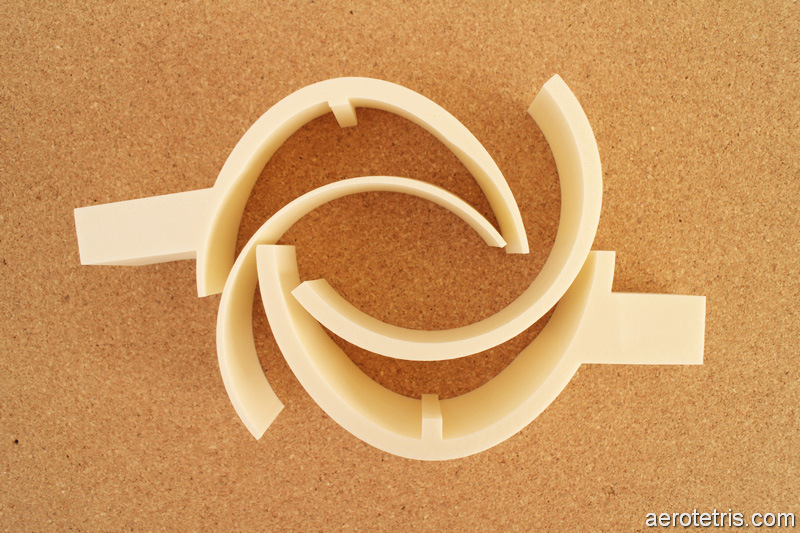

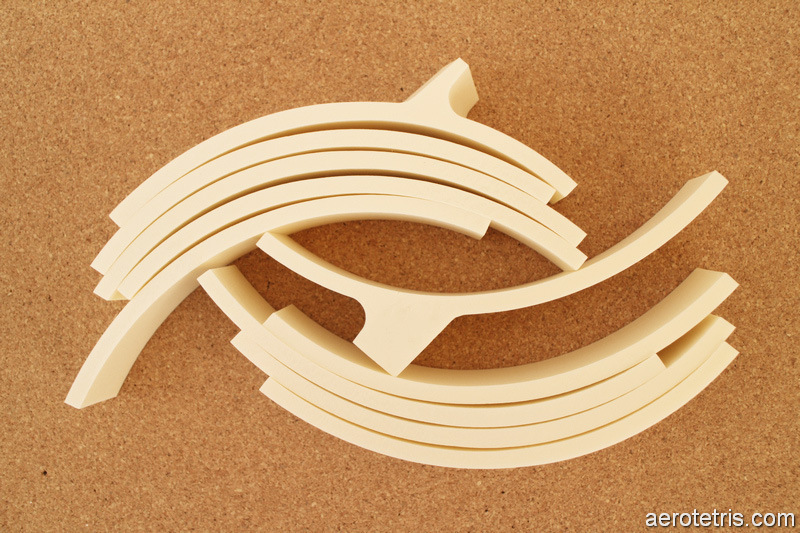

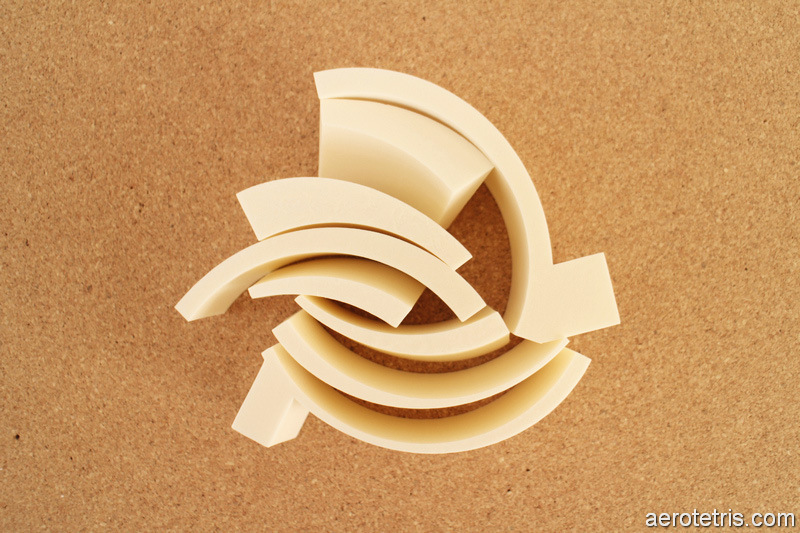

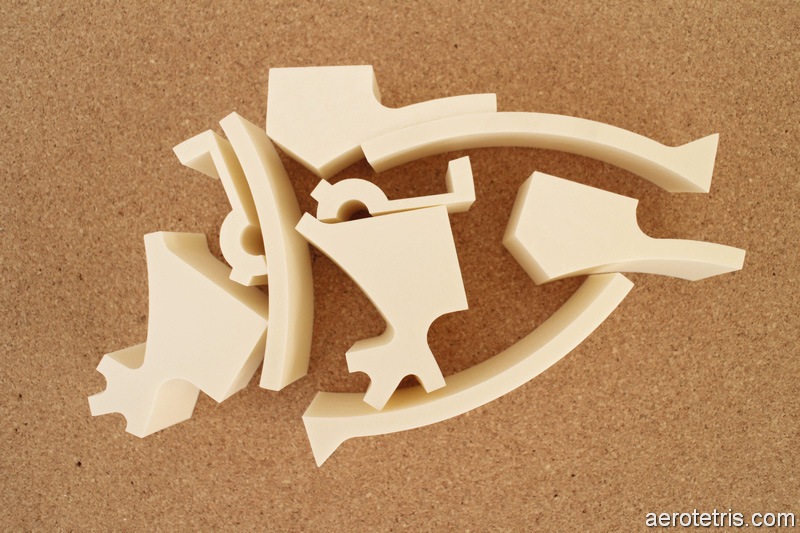

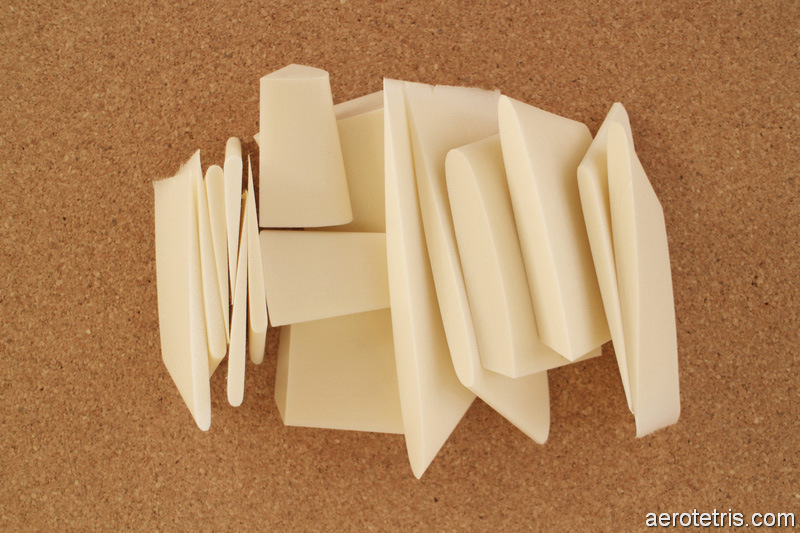

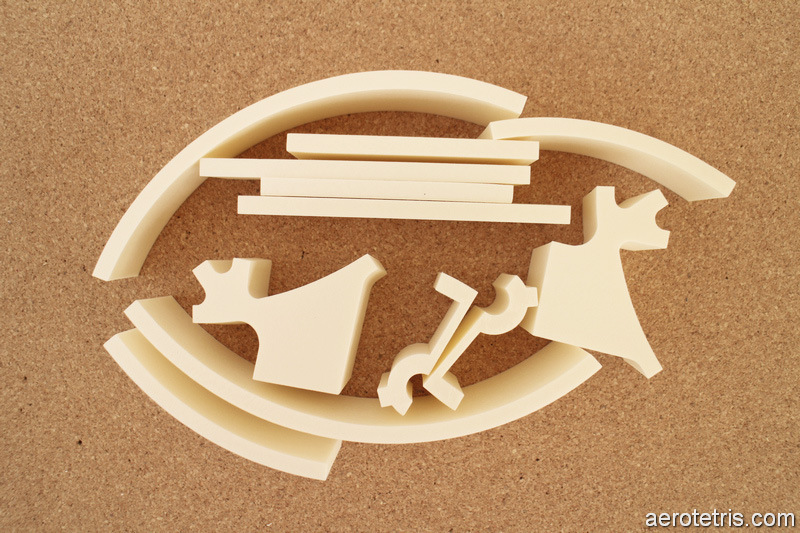

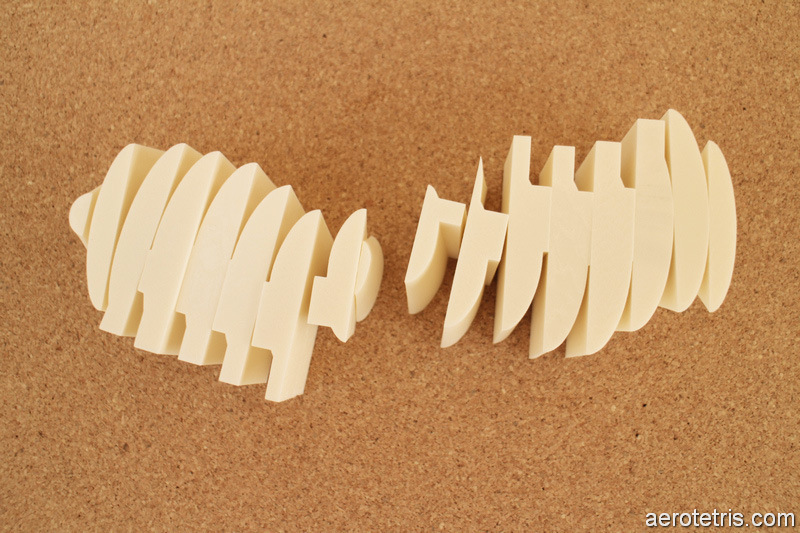

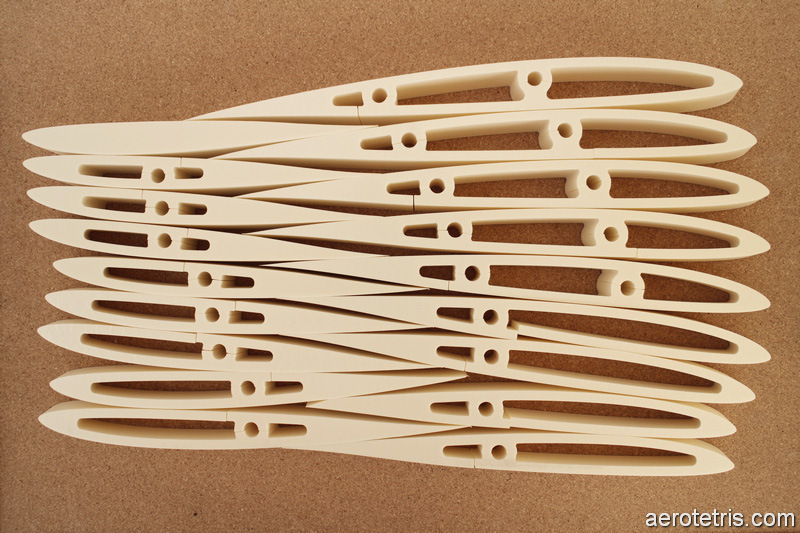

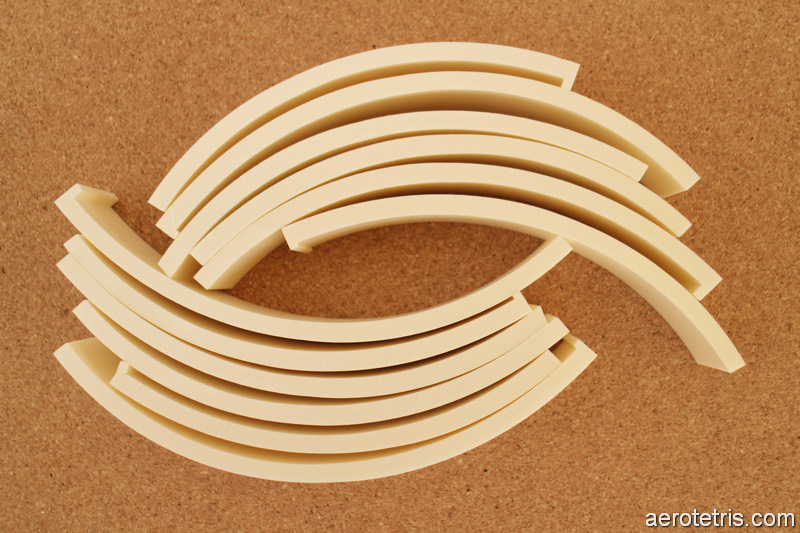

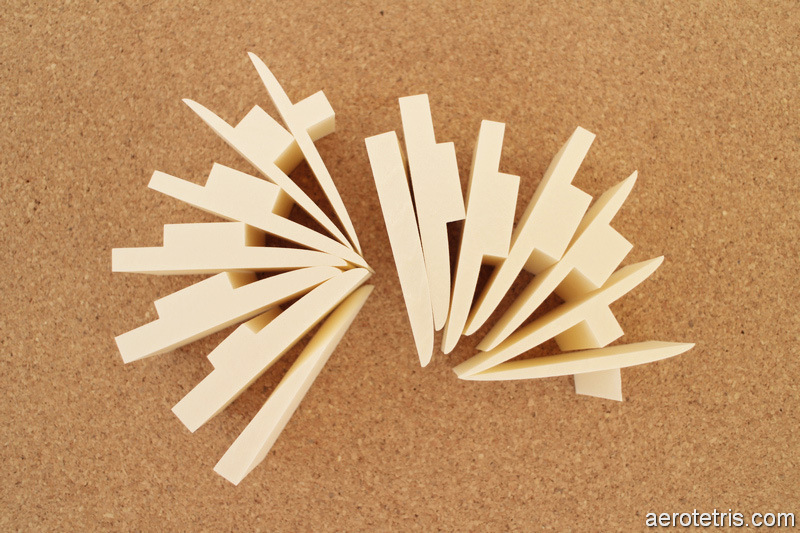

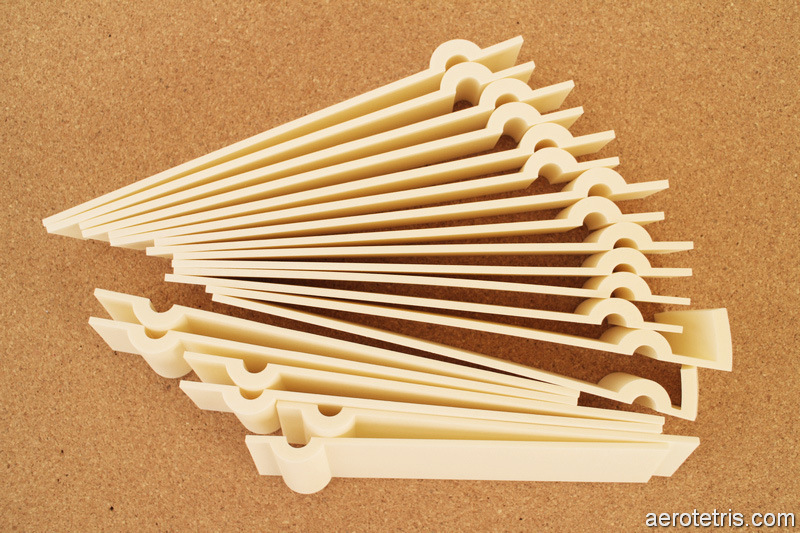

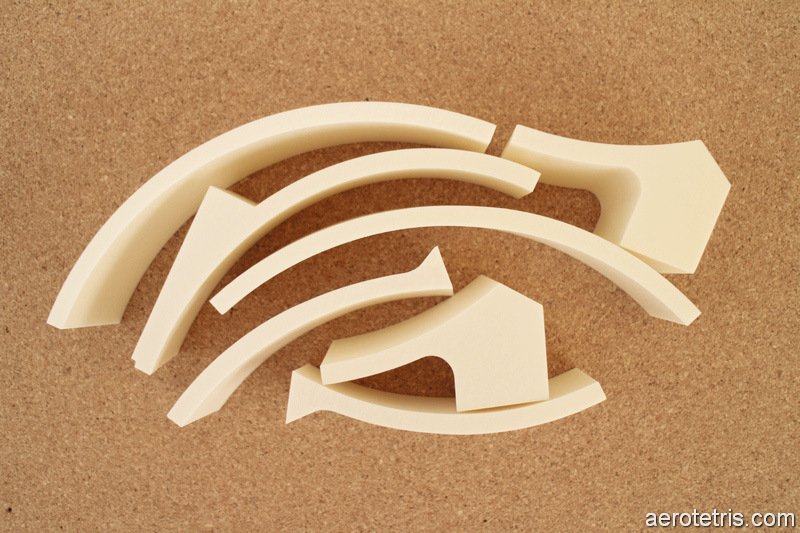

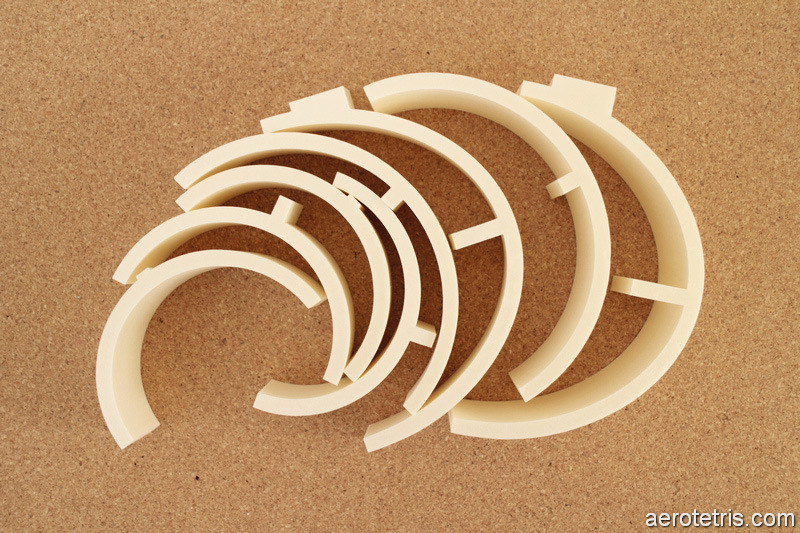

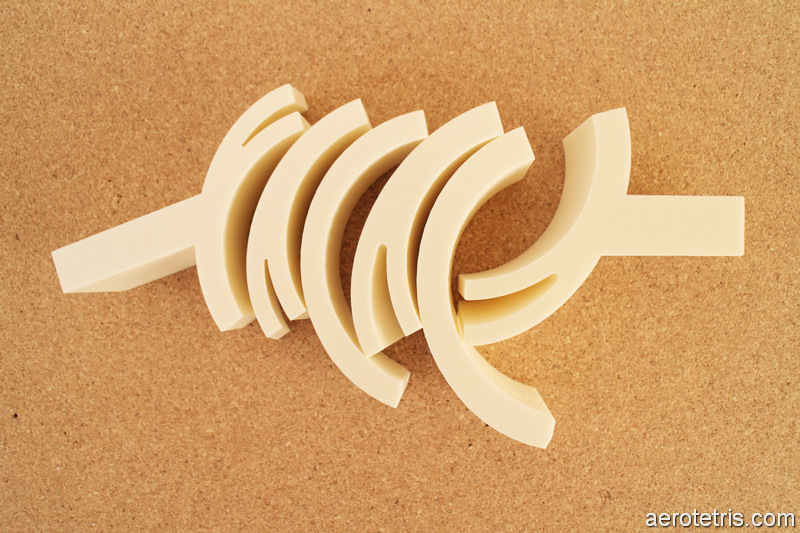

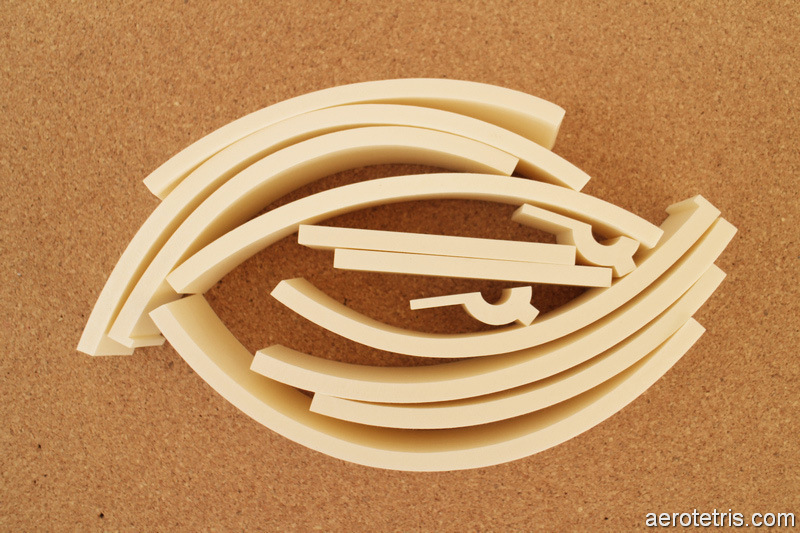

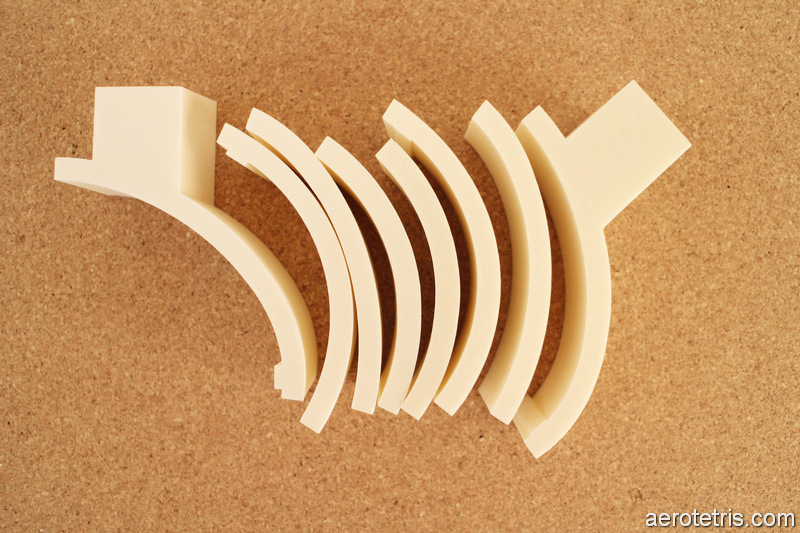

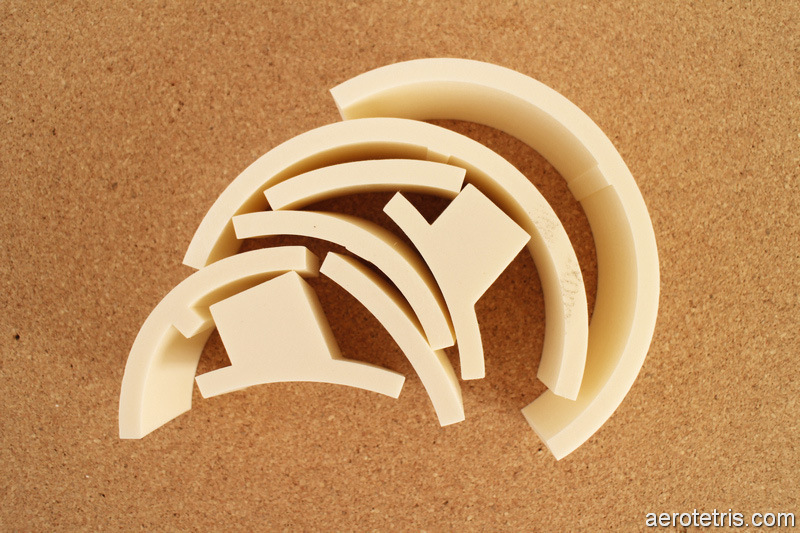

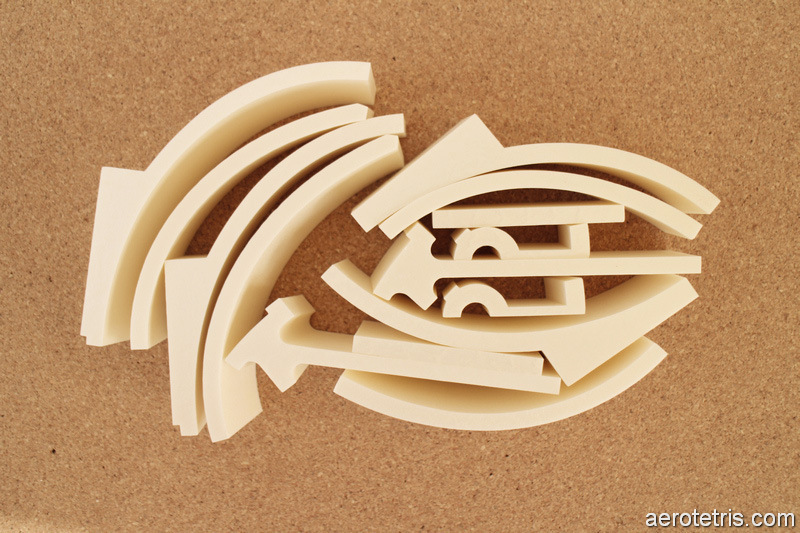

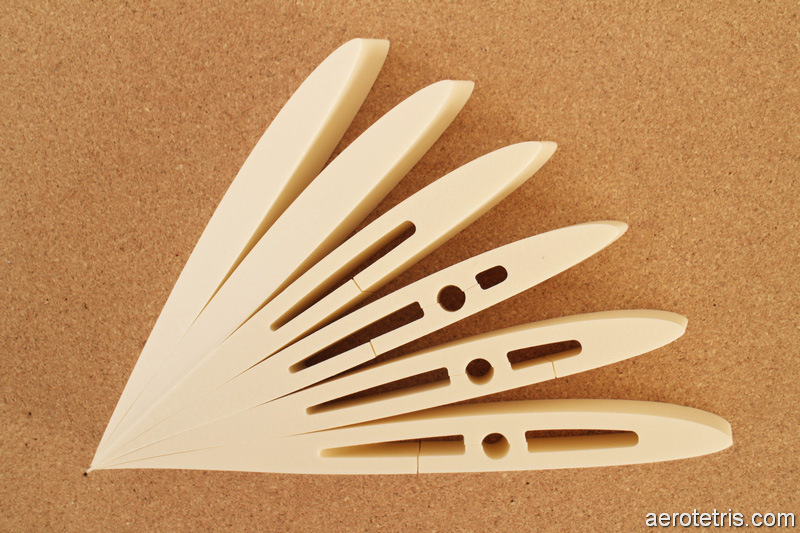

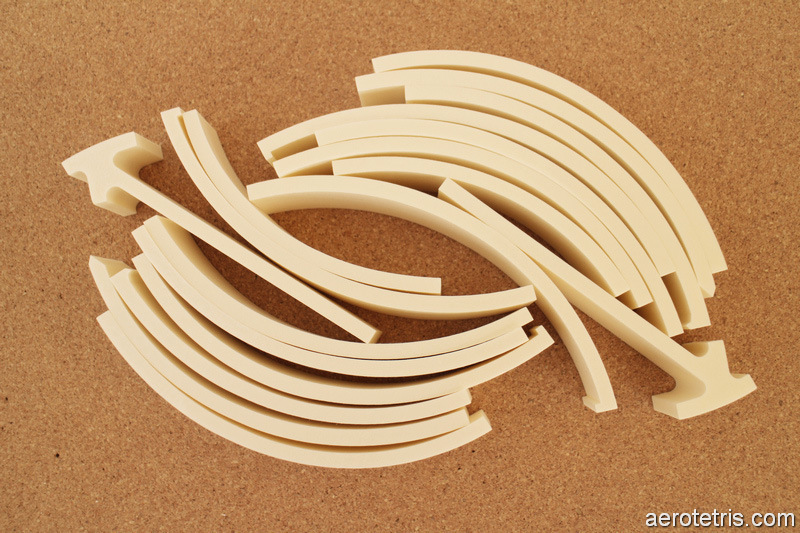

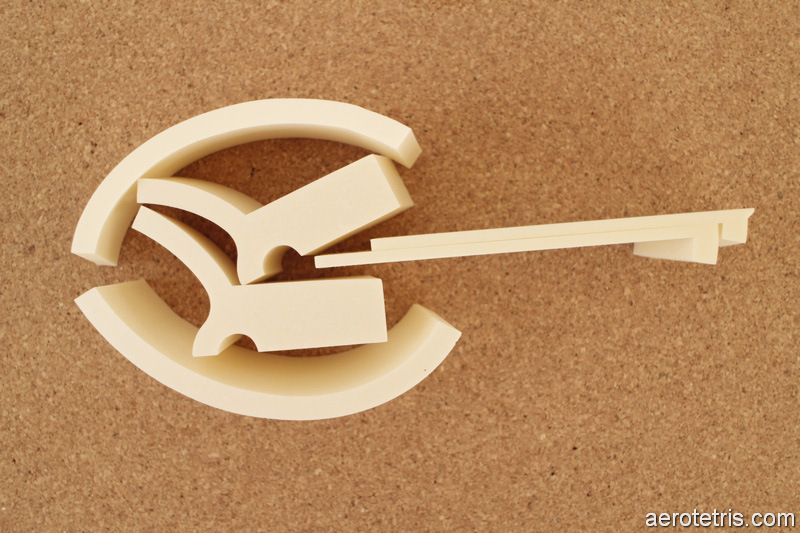

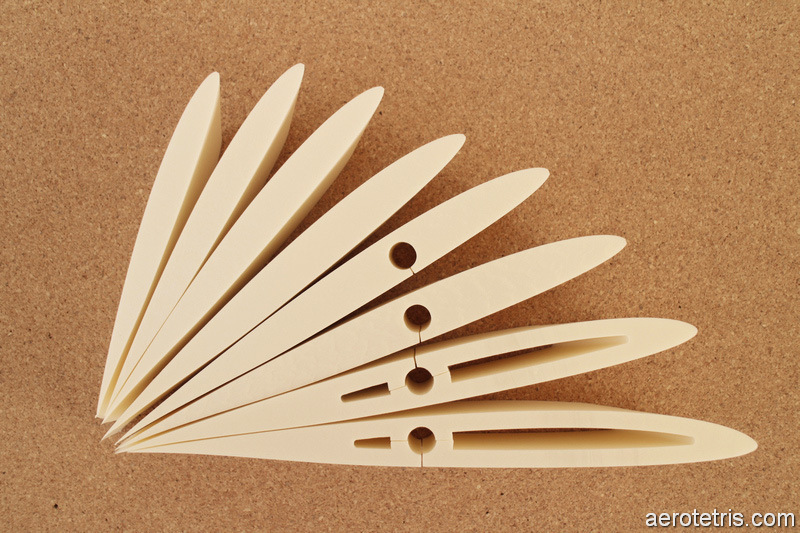

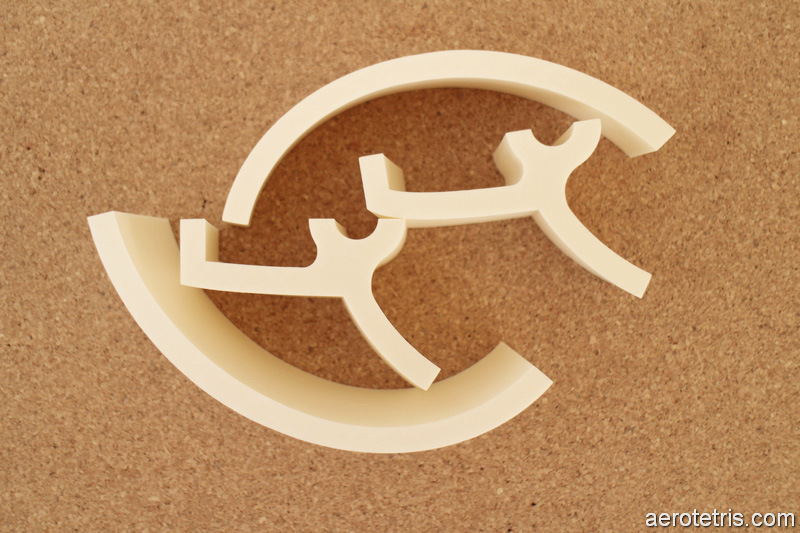

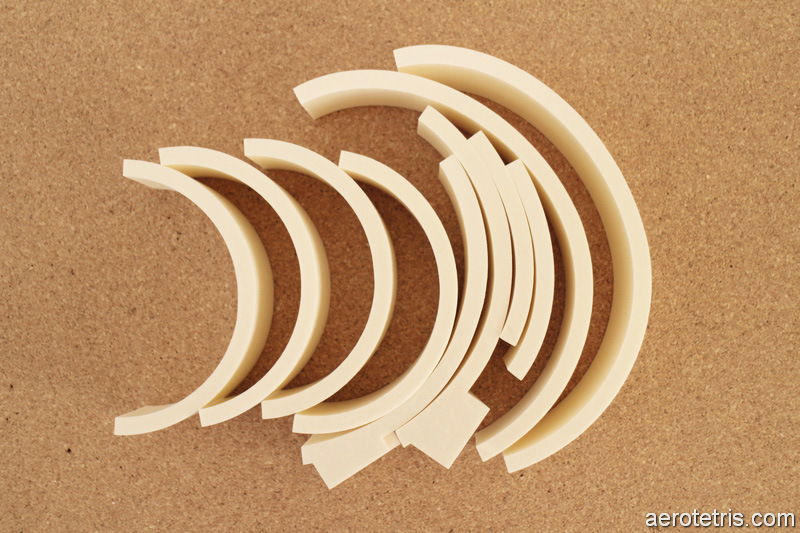

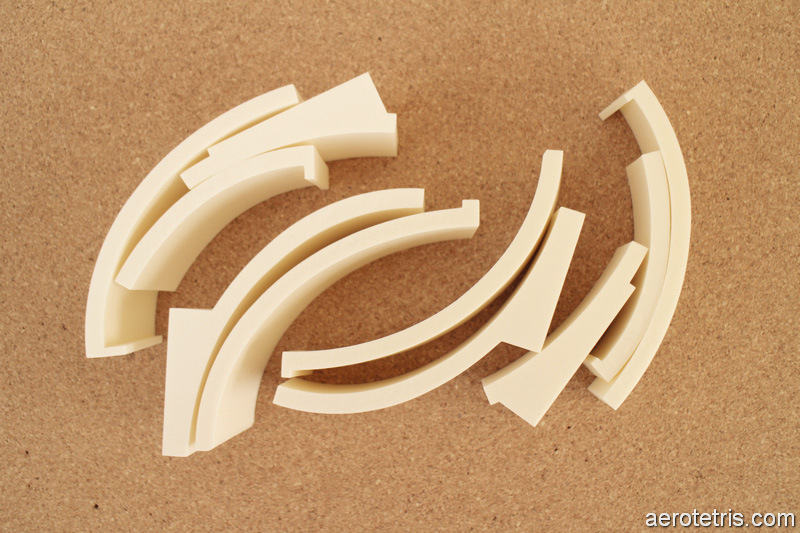

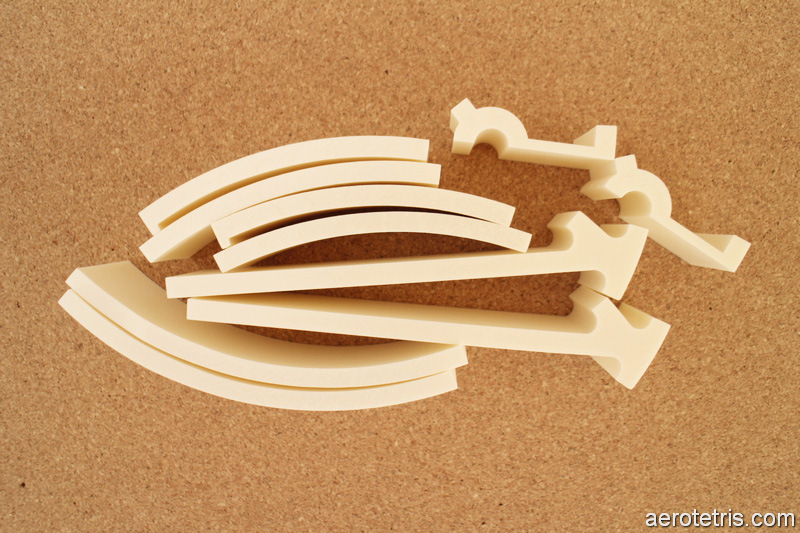

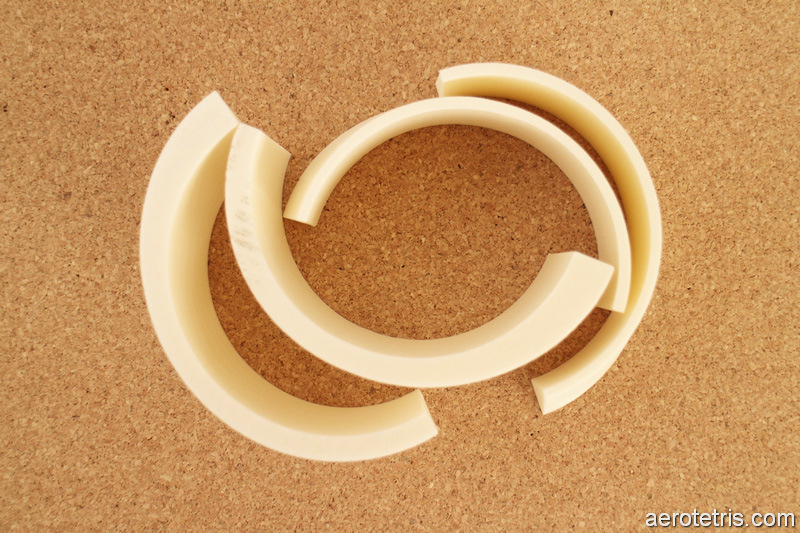

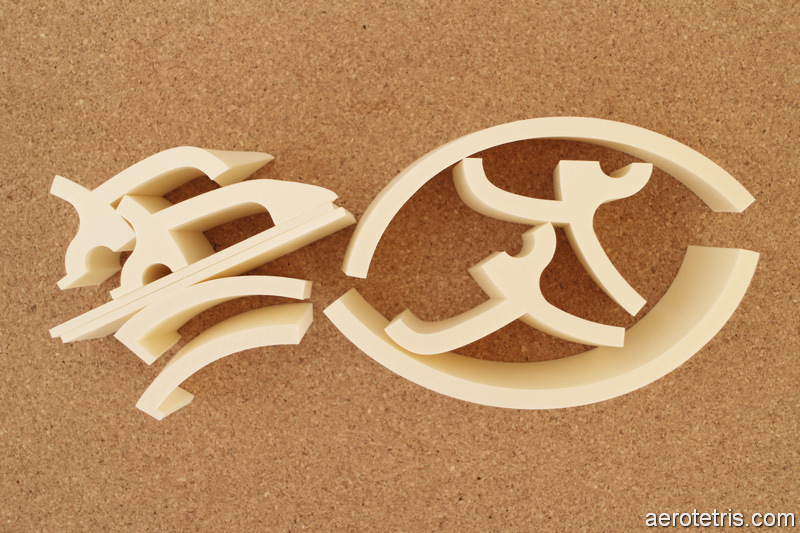

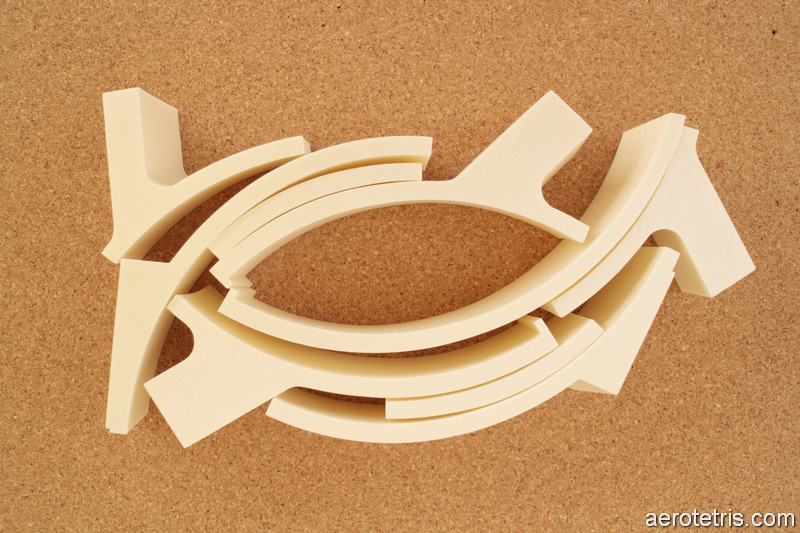

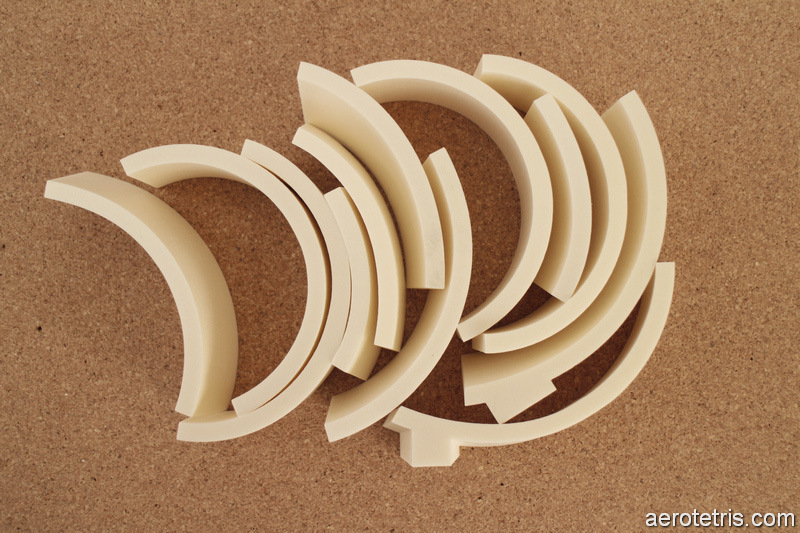

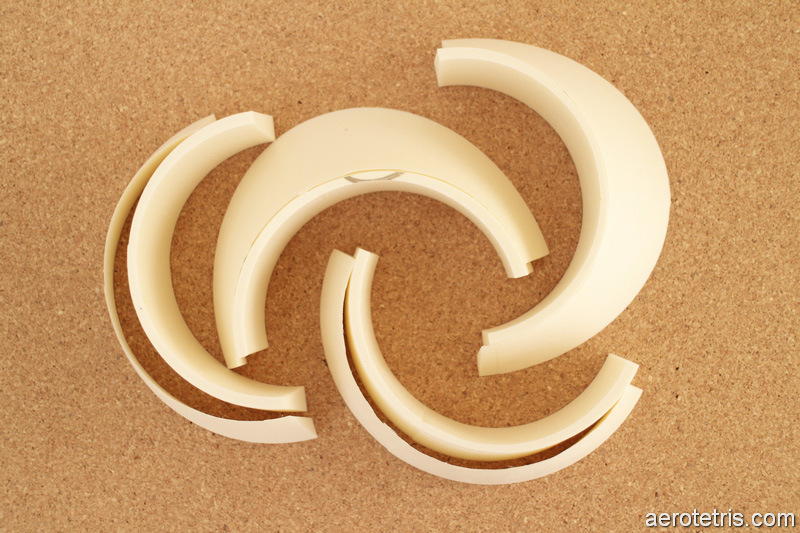

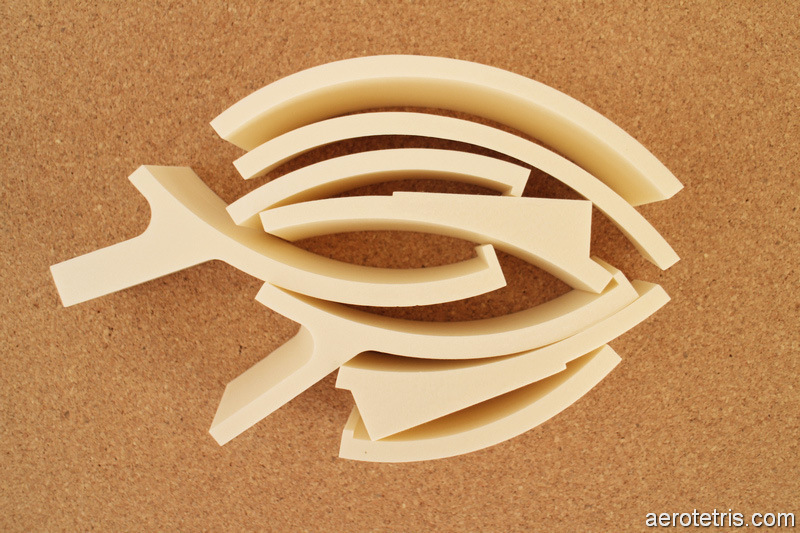

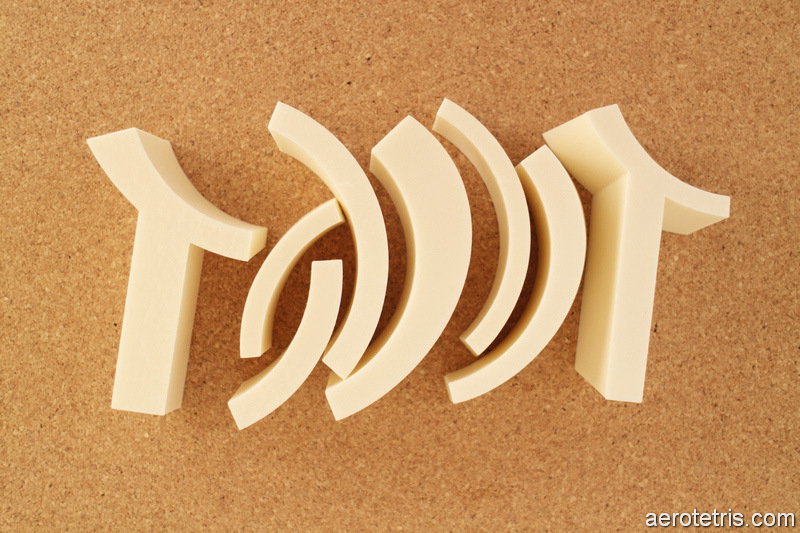

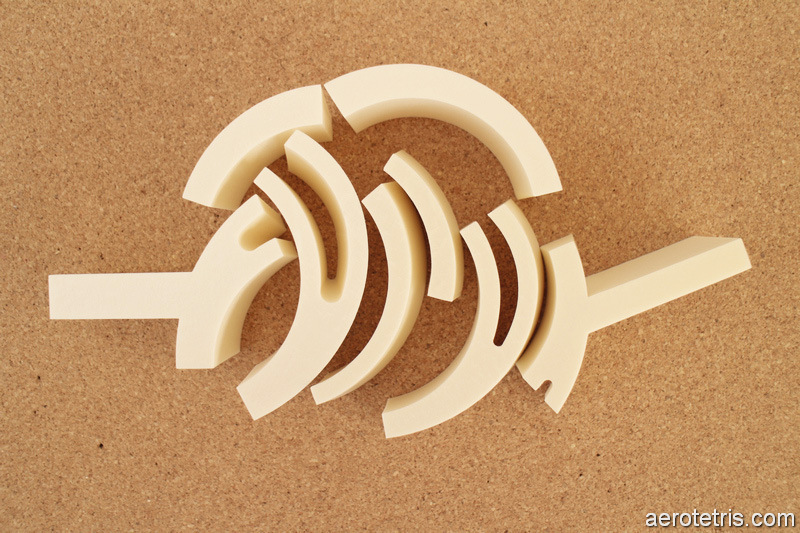

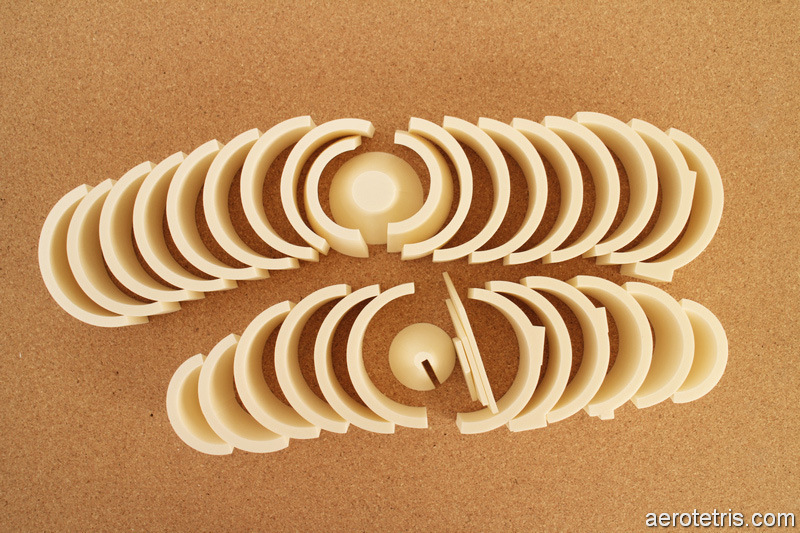

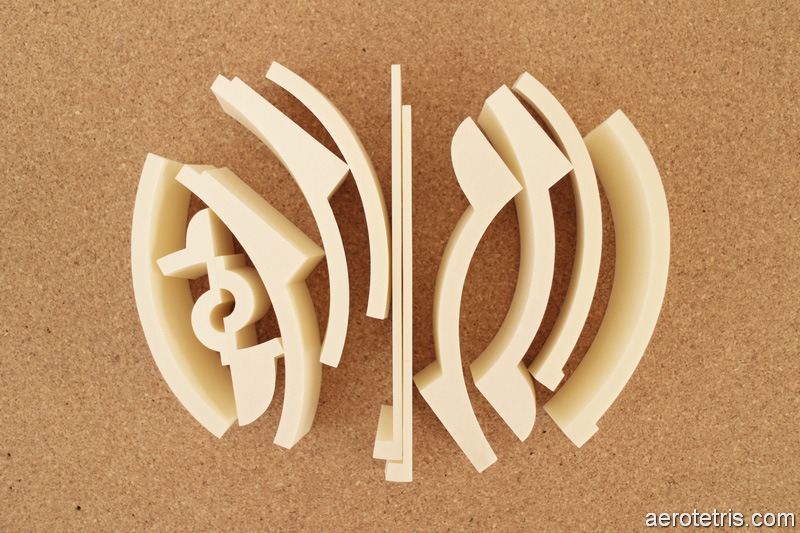

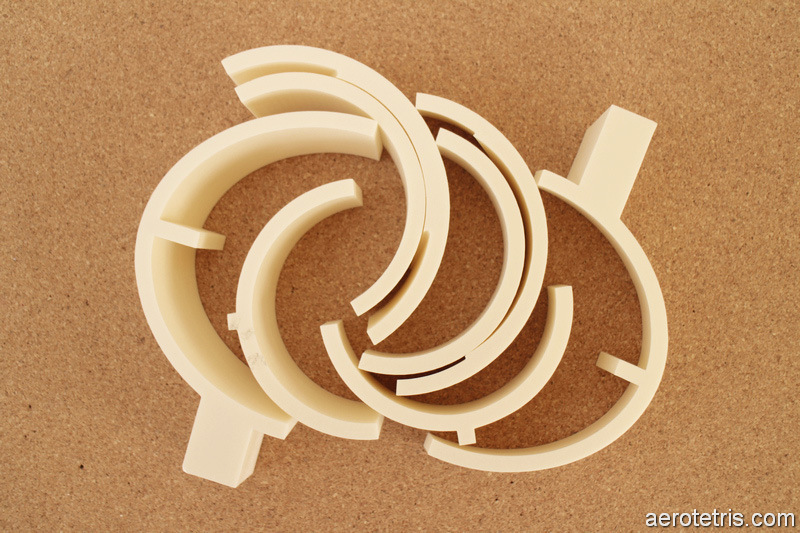

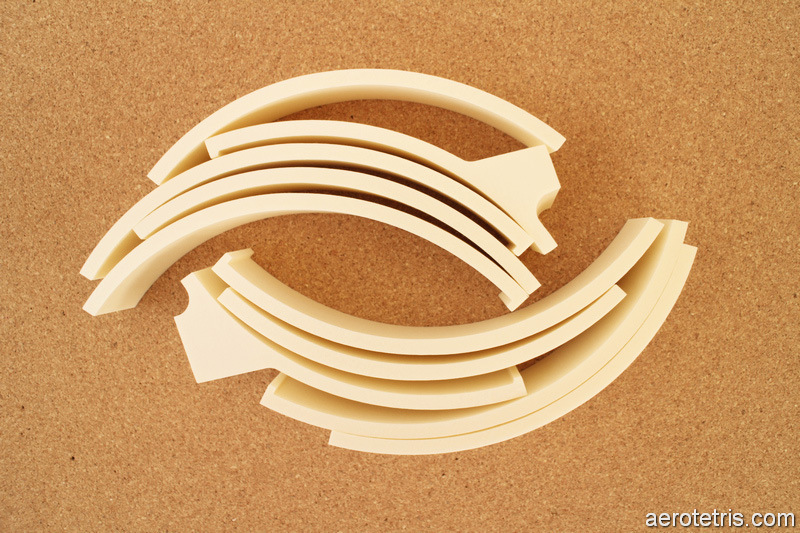

Number of components - basic model  - 644pc
CNC cutting length - 298320mm

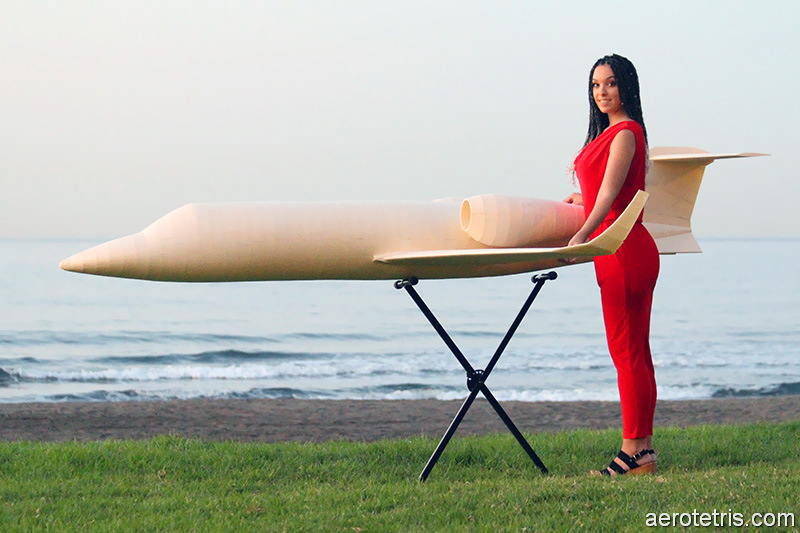

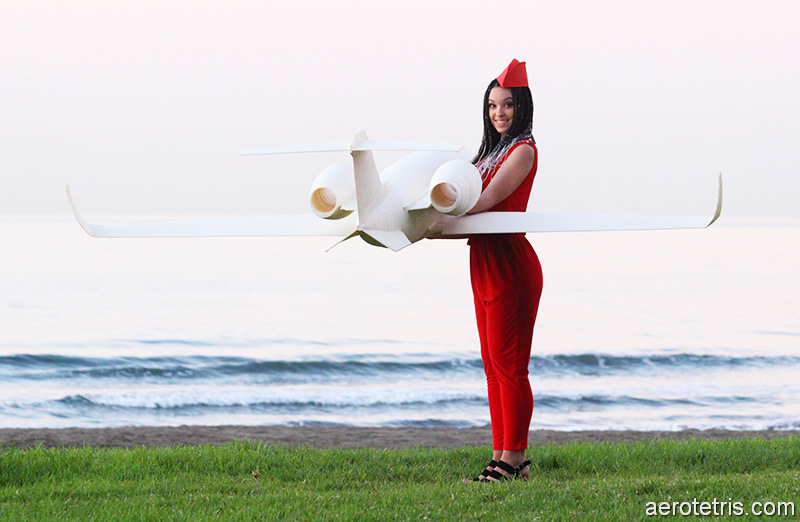

Weight glued full Learjet 31 - 2240 - ~ 1200-1300gr
For 2x90mm EDF
One parcel  - basic model - 500x470x330mm
Weight parcel  - basic model - 3000gr
Shipping is not included in the price
Shipping to any country for 3-20 days



Manual Learjet 31/35/23/24/25/28/55/60 - 2800/2240/1792 zip-file  10.5Mb

<<DETAILED INSTRUCTIONS INCLUDED>>

   299EUR + shipping

request shipping costs to other countries
