Model Tupolev Tu-160-4500 White Swan/Blackjack
Wingspan - 4633/4217/2961 mm
Length - 4500 mm
Wing area - 129.4dm
Reference area (S): 225,24/ 226.15/ 227.34dm
Reference length (lm): 562,6/ 598.8/ 827.0mm
CG (16%): 2322,9/ 2434.0/ 2472.2mm
CG (8%): 2367.9/ 2481.9/ 2538.3mm
AC: 2412.9/ 2529.8/ 2604.5mm
Number of components - 1384pc
CNC cutting length - 928540mm
Weight glued full - 3850gr
For 2/4x90/120mm EDF or JETs
One parcel 860*630*600mm/11000gr
Two parcel 2x630*600*430/5600gr
Shipping is not included in the price
Shipping to any country for 3-20 days

Manual Tupolev Tu-160-4500 White Swan/Blackjack zip-file  Mb

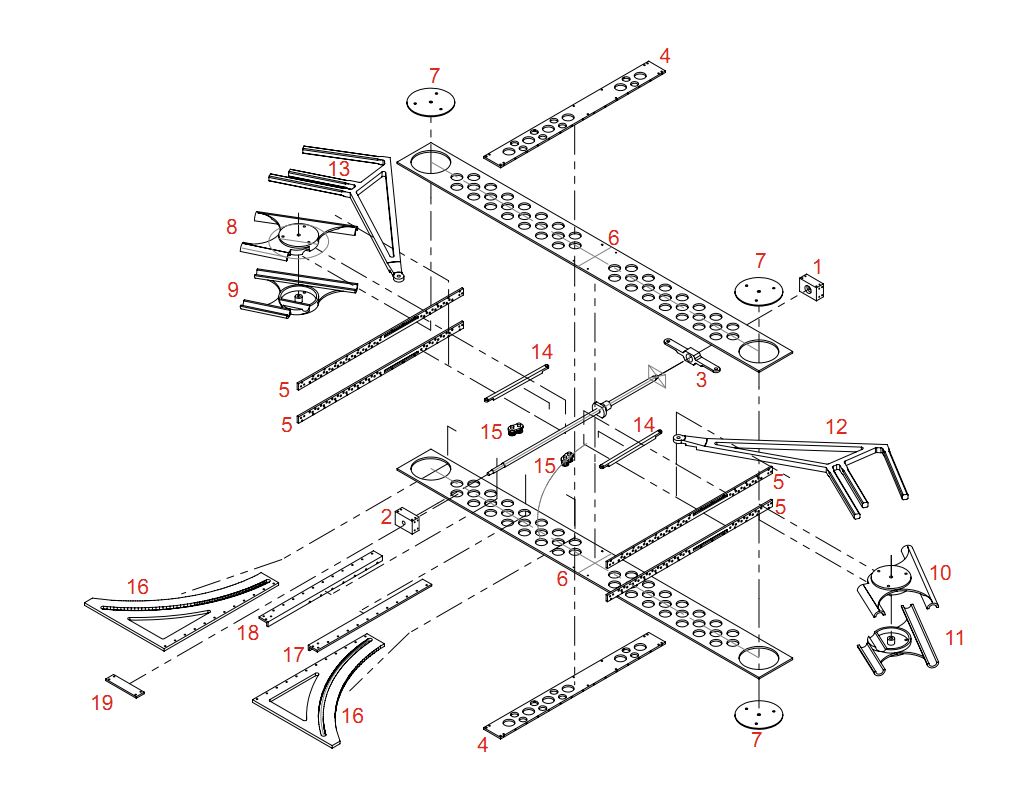

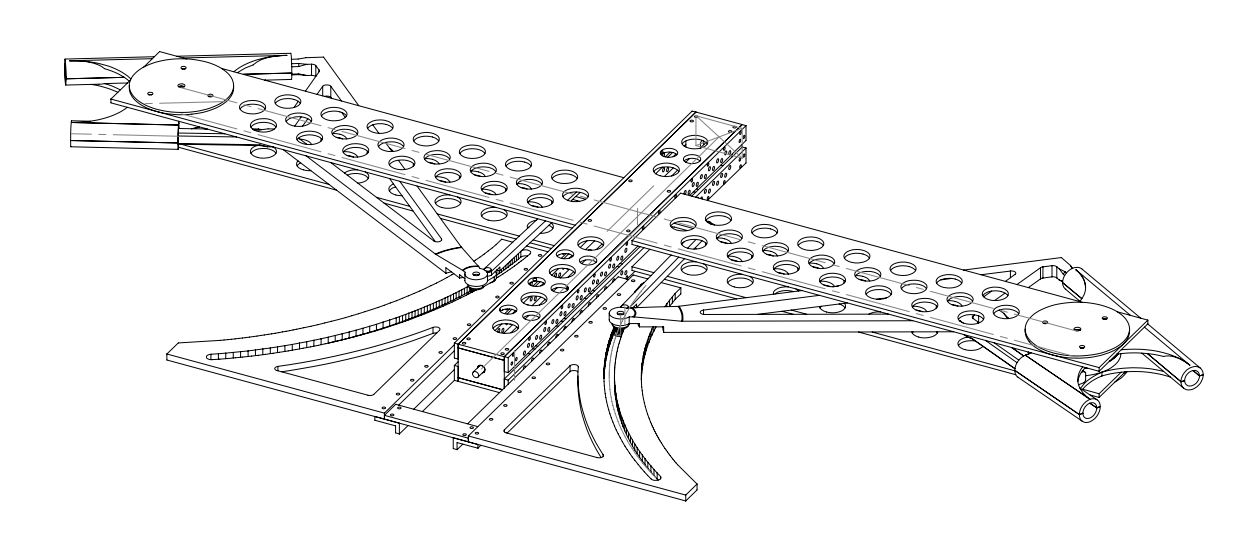

The kit includes a 3d model of the wing turning mechanism for CNC router.
The CAD/CAM files of the wing turning mechanism are not sold separately from the kit.

  999EUR + shipping

request shipping costs to other countries
